CHMER
Best Seller
CM 323C
CHMER CM 323C CNC die-sinker EDM (CNC Series) with 1,000-set S-code working conditions, E-code function and APC anti-arc; 300 x 200 mm table travel.
CNC
Die Sinker EDM
X × Y × Z axis travel
300 × 200 × 300 mm
Work Piece size (WxDxH)
820 × 500 × 300 mm
Maximum workpiece weight
500 kg
Maximum electrode weight
60 kg
CHMER
Best Seller
CM 434C
CHMER CM 434C CNC die-sinker EDM (CNC Series) with 1,000-set S-code working conditions, E-code function and APC anti-arc; 400 x 300 mm table travel.
CNC
Die Sinker EDM
X × Y × Z axis travel
400 × 300 × 350 mm
Work Piece size (WxDxH)
1050 × 630 × 350 mm
Maximum workpiece weight
750 kg
Maximum electrode weight
100 kg
CHMER
Best Seller

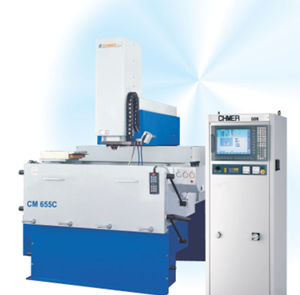

CM 655C
CHMER CM 655C CNC die-sinker EDM (CNC Series) with 1,000-set S-code working conditions, E-code function and APC anti-arc; 600 x 500 mm table travel.
CNC
Die Sinker EDM
X × Y × Z axis travel
600 × 500 × 500 mm
Work Piece size (WxDxH)
1450 × 950 × 550 mm
Maximum workpiece weight
3000 kg
Maximum electrode weight
300 kg
CHMER
Best Seller
CM 865C
CHMER CM 865C CNC die-sinker EDM (CNC Series) with 1,000-set S-code working conditions, E-code function and APC anti-arc; 800 x 600 mm table travel.
CNC
Die Sinker EDM
X × Y × Z axis travel
800 × 600 × 500 mm
Work Piece size (WxDxH)
1600 × 1000 × 550 mm
Maximum workpiece weight
4000 kg
Maximum electrode weight
300 kg
CHMER
Best Seller
CM 1065C
CHMER CM 1065C CNC die-sinker EDM (CNC Series) with 1,000-set S-code working conditions, E-code function and APC anti-arc; 1,000 x 600 mm table travel.
CNC
Die Sinker EDM
X × Y × Z axis travel
1000 × 600 × 500 mm
Work Piece size (WxDxH)
2100 × 1200 × 600 mm
Maximum workpiece weight
5000 kg
Maximum electrode weight
300 kg
CHMER
Best Seller
CM 1265C
CHMER CM 1265C CNC die-sinker EDM (CNC Series) with 1,000-set S-code working conditions, E-code function and APC anti-arc; 1,200 x 600 mm table travel.
CNC
Die Sinker EDM
X × Y × Z axis travel
1200 × 600 × 500 mm
Work Piece size (WxDxH)
2500 × 1350 × 700 mm
Maximum workpiece weight
7500 kg
Maximum electrode weight
300 kg
CHMER
Best Seller
CM A43C
CHMER CM A43C CNC die-sinker EDM (A-Series, standard base) with linear glass-scale close-loop control and APC protection; 400 x 300 mm table travel.
CNC
Die Sinker EDM
X × Y × Z axis travel
400 × 300 × 300 mm
Work Piece size (WxDxH)
1100 × 640 × 400 mm
Maximum workpiece weight
1000 kg
Maximum electrode weight
60 kg
CHMER
Best Seller
CM A53C
CHMER CM A53C CNC die-sinker EDM (A-Series, standard base) with linear glass-scale close-loop control and APC protection; 500 x 350 mm table travel.
CNC
Die Sinker EDM
X × Y × Z axis travel
500 × 350 × 350 mm
Work Piece size (WxDxH)
1350 × 740 × 450 mm
Maximum workpiece weight
1500 kg
Maximum electrode weight
100 kg
CHMER
Best Seller
CM A64C
CHMER CM A64C CNC die-sinker EDM (A-Series, standard base) with linear glass-scale close-loop control and APC protection; 600 x 400 mm table travel.
CNC
Die Sinker EDM
X × Y × Z axis travel
600 × 400 × 350 mm
Work Piece size (WxDxH)
1350 × 740 × 450 mm
Maximum workpiece weight
1500 kg
Maximum electrode weight
100 kg
CHMER
Best Seller
D322CL
CHMER D322CL linear-drive die-sinker EDM (Linear Drive Series) for high machining speed and low electrode wear; 300 x 200 mm table travel, Z by linear motor.
CNC
Die Sinker EDM
X × Y × Z axis travel
300 × 200 × 250 mm
Work Piece size (WxDxH)
720 × 450 × 190 mm
Maximum workpiece weight
300 kg
Maximum electrode weight
20 kg
CHMER
Best Seller

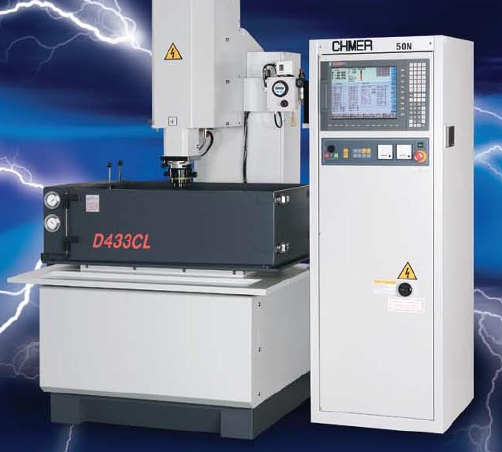

D433CL
CHMER D433CL linear-drive die-sinker EDM (Linear Drive Series) for high machining speed and low electrode wear; 400 x 300 mm table travel, Z by linear motor.
CNC
Die Sinker EDM
X × Y × Z axis travel
400 × 300 × 300 mm
Work Piece size (WxDxH)
950 × 560 × 250 mm
Maximum workpiece weight
350 kg
Maximum electrode weight
30 kg
CHMER
Best Seller
CM A43CP
CHMER CM A43CP CNC die-sinker EDM (A-Series, column-move (bridge) base) with linear glass-scale close-loop control and APC protection; 400 x 300 mm table travel.
CNC
Die Sinker EDM
X × Y × Z axis travel
400 × 300 × 300 mm
Work Piece size (WxDxH)
1100 × 640 × 400 mm
Maximum workpiece weight
1000 kg
Maximum electrode weight
60 kg
CHMER
Best Seller
CM A53CP
CHMER CM A53CP CNC die-sinker EDM (A-Series, column-move (bridge) base) with linear glass-scale close-loop control and APC protection; 500 x 350 mm table travel.
CNC
Die Sinker EDM
X × Y × Z axis travel
500 × 350 × 350 mm
Work Piece size (WxDxH)
1350 × 740 × 450 mm
Maximum workpiece weight
1500 kg
Maximum electrode weight
100 kg
CHMER
Best Seller

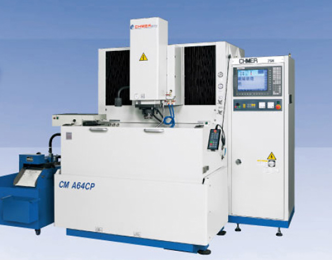

CM A64CP
CHMER CM A64CP CNC die-sinker EDM (A-Series, column-move (bridge) base) with linear glass-scale close-loop control and APC protection; 600 x 400 mm table travel.
CNC
Die Sinker EDM
X × Y × Z axis travel
600 × 400 × 350 mm
Work Piece size (WxDxH)
1350 × 740 × 450 mm
Maximum workpiece weight
1500 kg
Maximum electrode weight
100 kg
